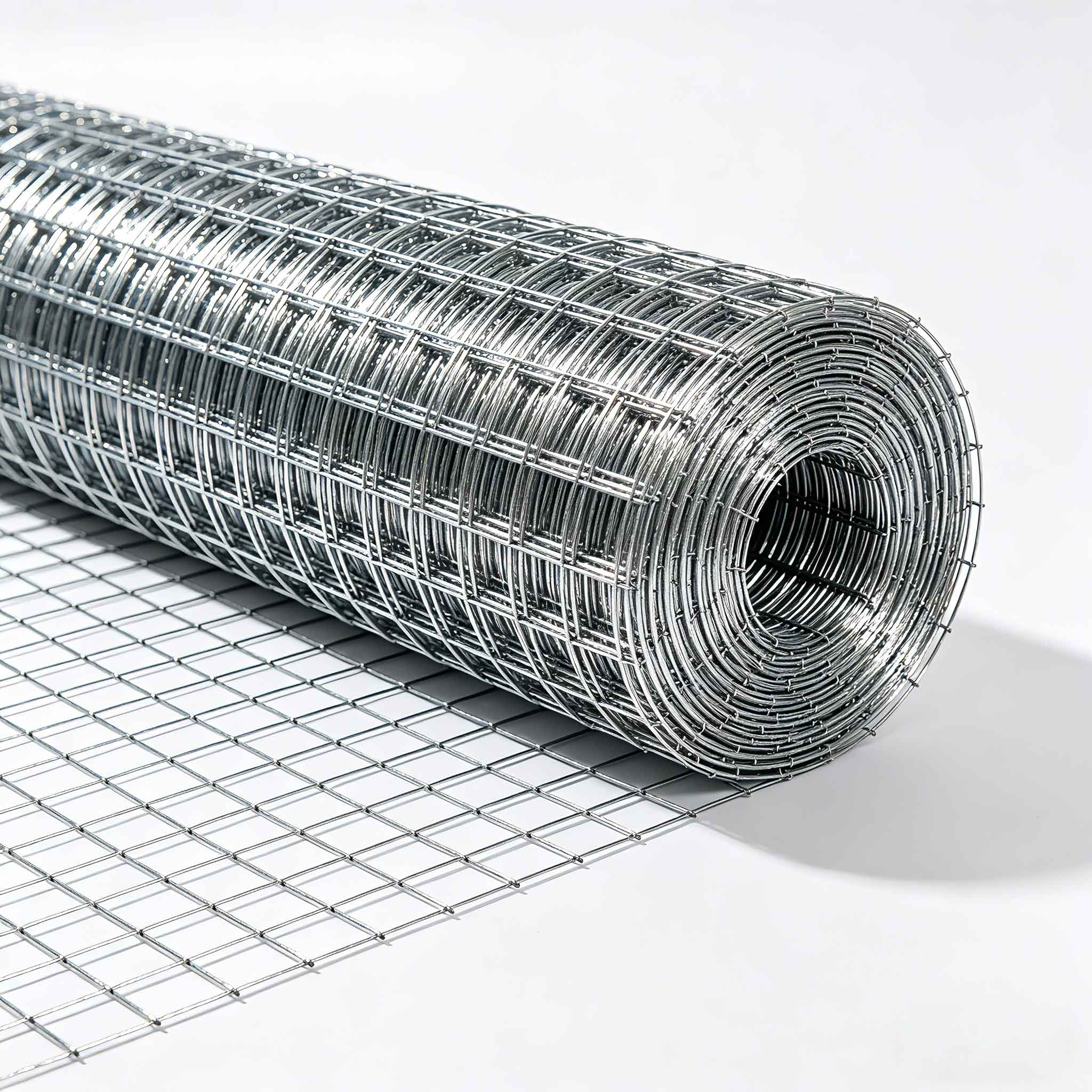

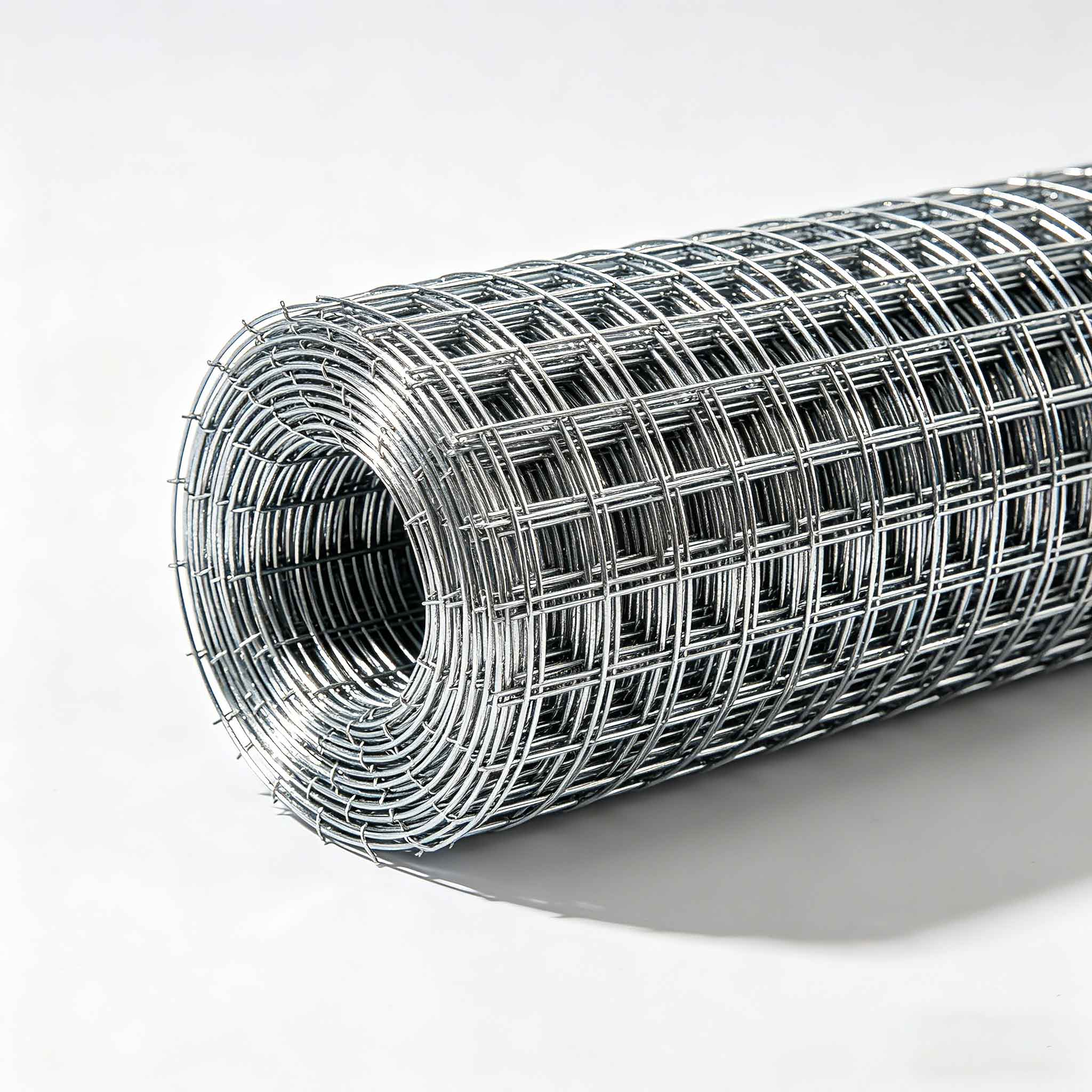

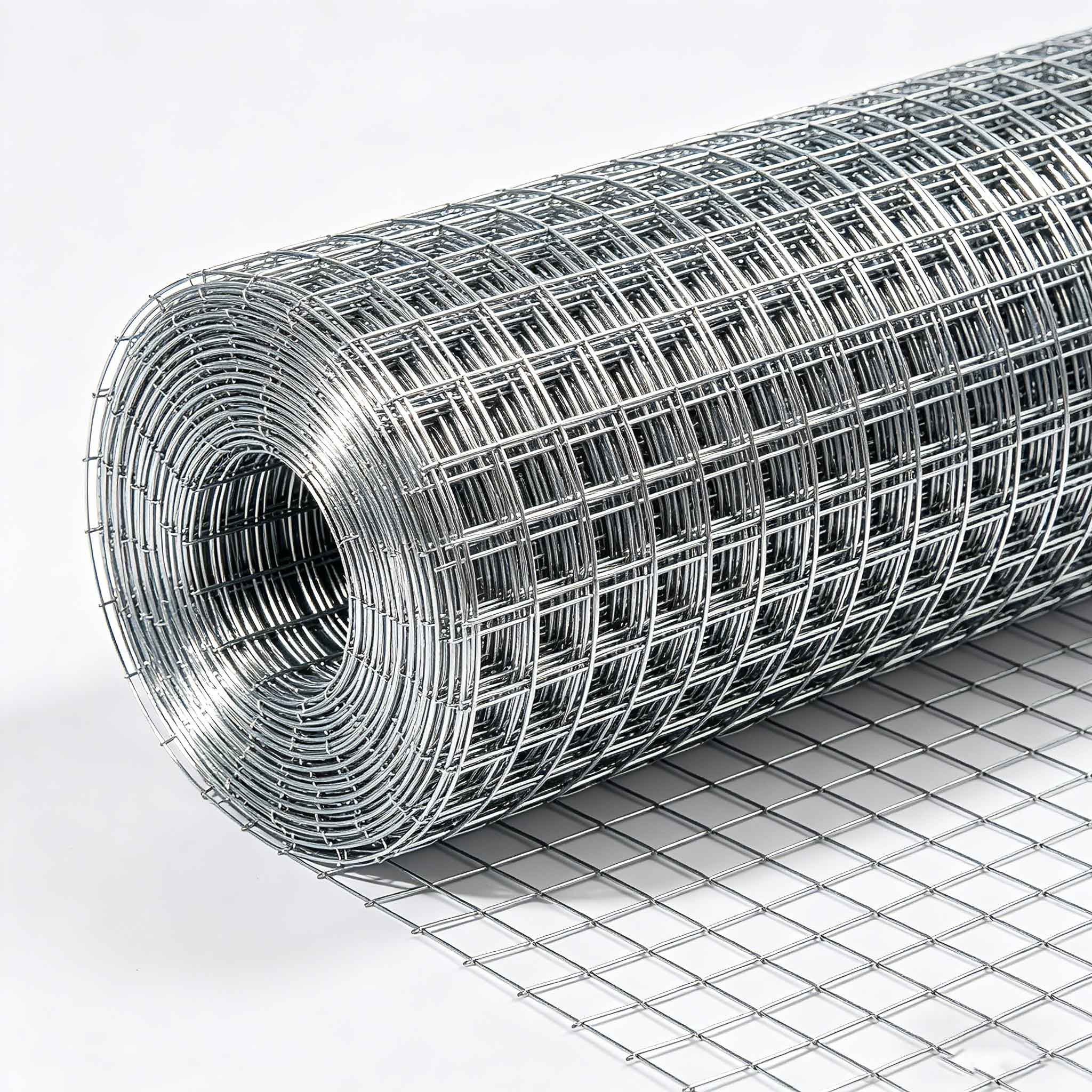

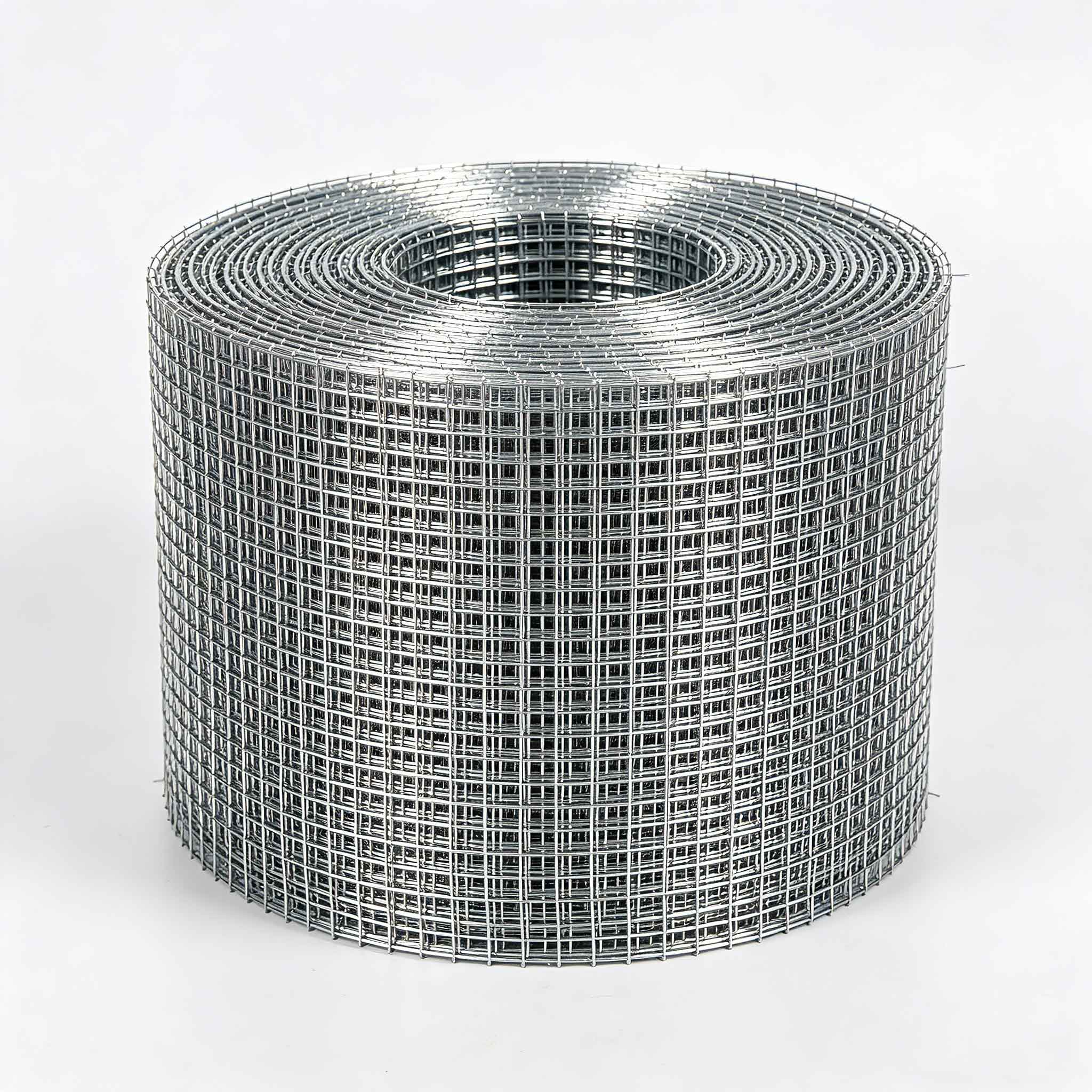

Welded wire mesh is a mesh product made of high-quality low-carbon steel wire welded at each intersection using precision automated welding equipment. It features a flat mesh surface, a sturdy structure, and strong overall integrity.
Keywords
1. welded wire mesh(panel)
2. welded wire mesh guarding net
3. galvanized welded wire mesh (panel)
4. (color）+pvc coated welded wire mesh (panel)
5. welded wire mesh fence
6. hot dipped/electro galvanized welded wire mesh
7. reinforcing (steel) welded wire mesh
8. welded wire mesh fence for protection/chicken/construction/building material/pet cage/rabbit/animal
9. welded wire mesh roll price
10. low carbon steel welded wire mesh
Product details

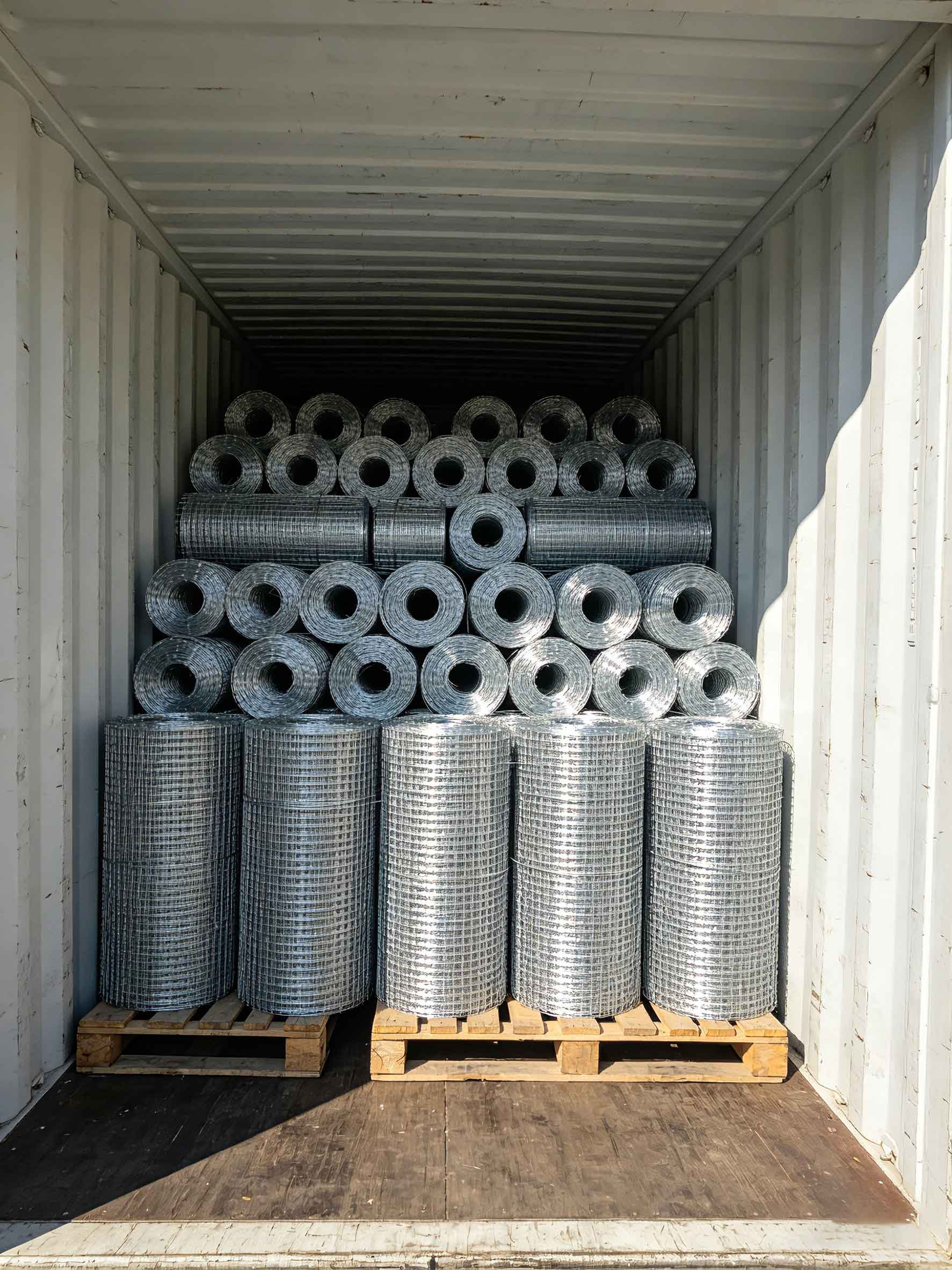

l Hot-dip galvanizing: Smooth surface, bright color, strong corrosion resistance, and long service life (up to 7 years).
l Electro-galvanizing (cold galvanizing): Lower zinc coating than hot-dip galvanizing, surface bright.

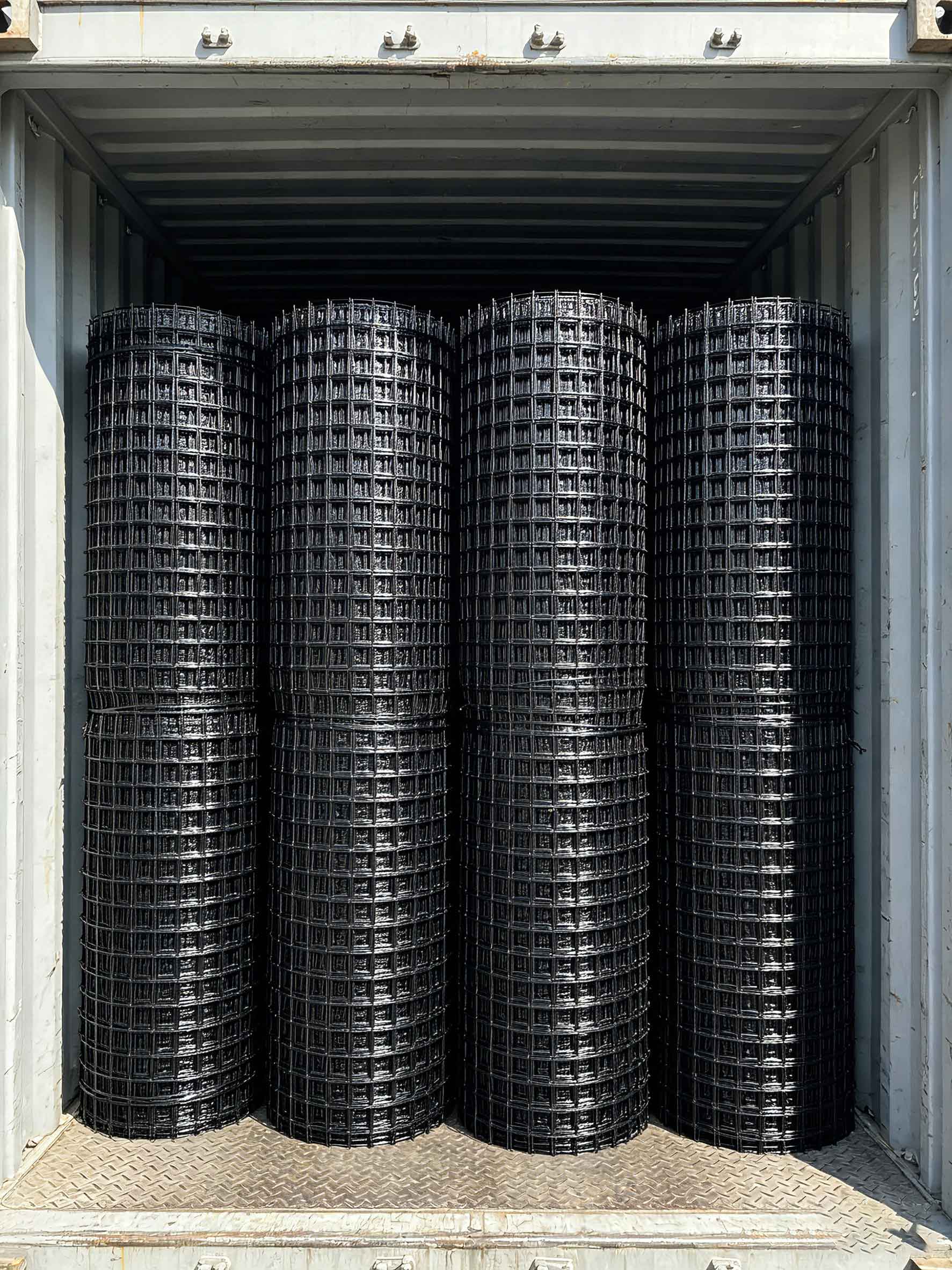

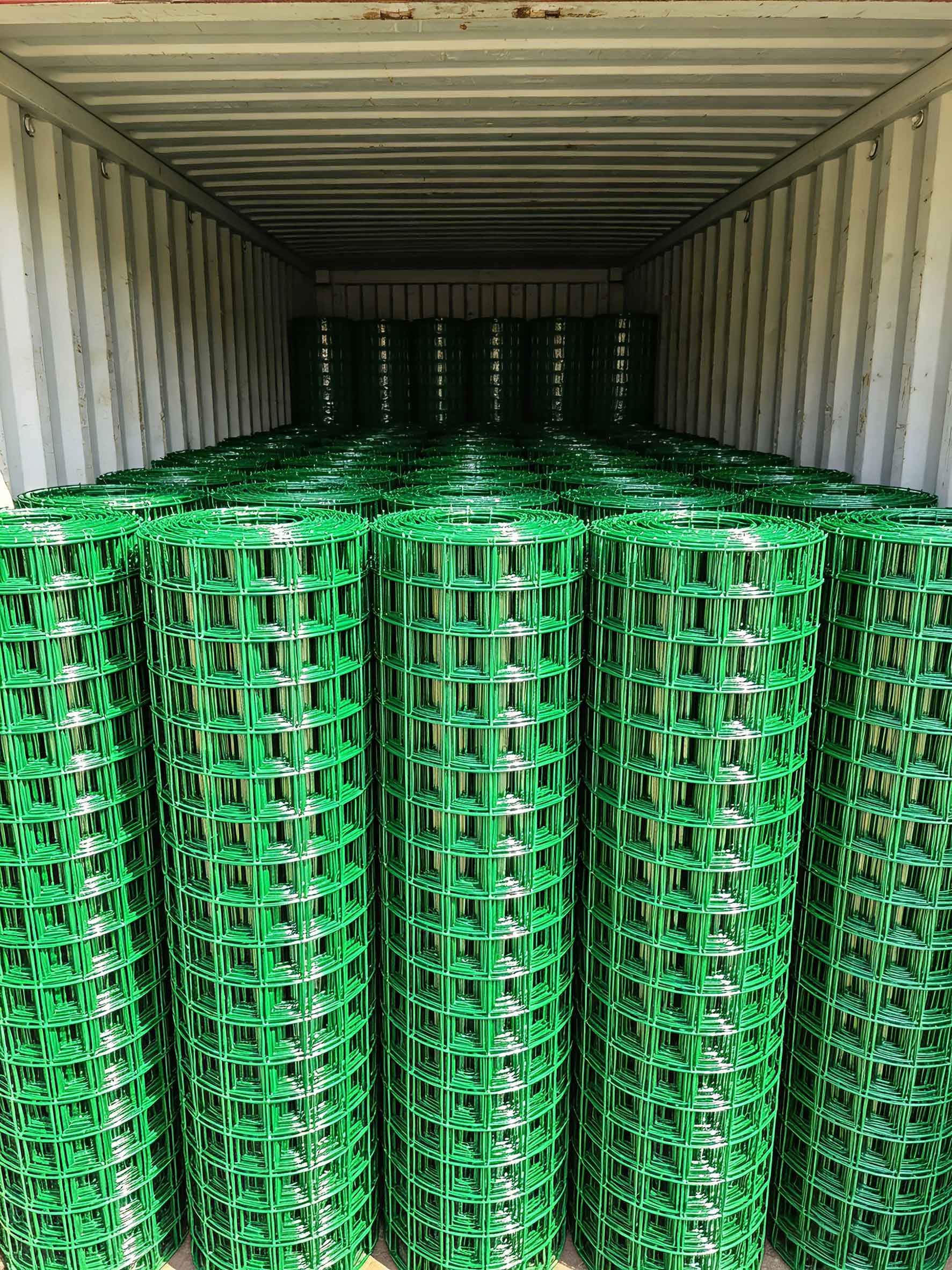

l PVC coating: Outer layer of PVC, suitable for fencing.
|  |  |
l Corrosion Resistance: The zinc coating prevents rust, making it ideal for outdoor and high-moisture environments. The flexible PVC layer applied to the surface to prevent rust and cracking.
l Structural Integrity: Precise welding at each intersection creates a rigid and consistent structure.
l Color & Appearance: Available in various colors (usually green or black) for enhanced aesthetics and corrosion resistance.
l Durability: Resists UV rays, aging, and corrosion, providing a longer service life than bare wire.
l Types: Available in both rolls and panels, including hot-dipped for maximum protection and electro-galvanized for precise, lighter applications.
l Easy to cut and install.
l Long lifespan due to zinc coating.
l Provides security, protection, and structural support.

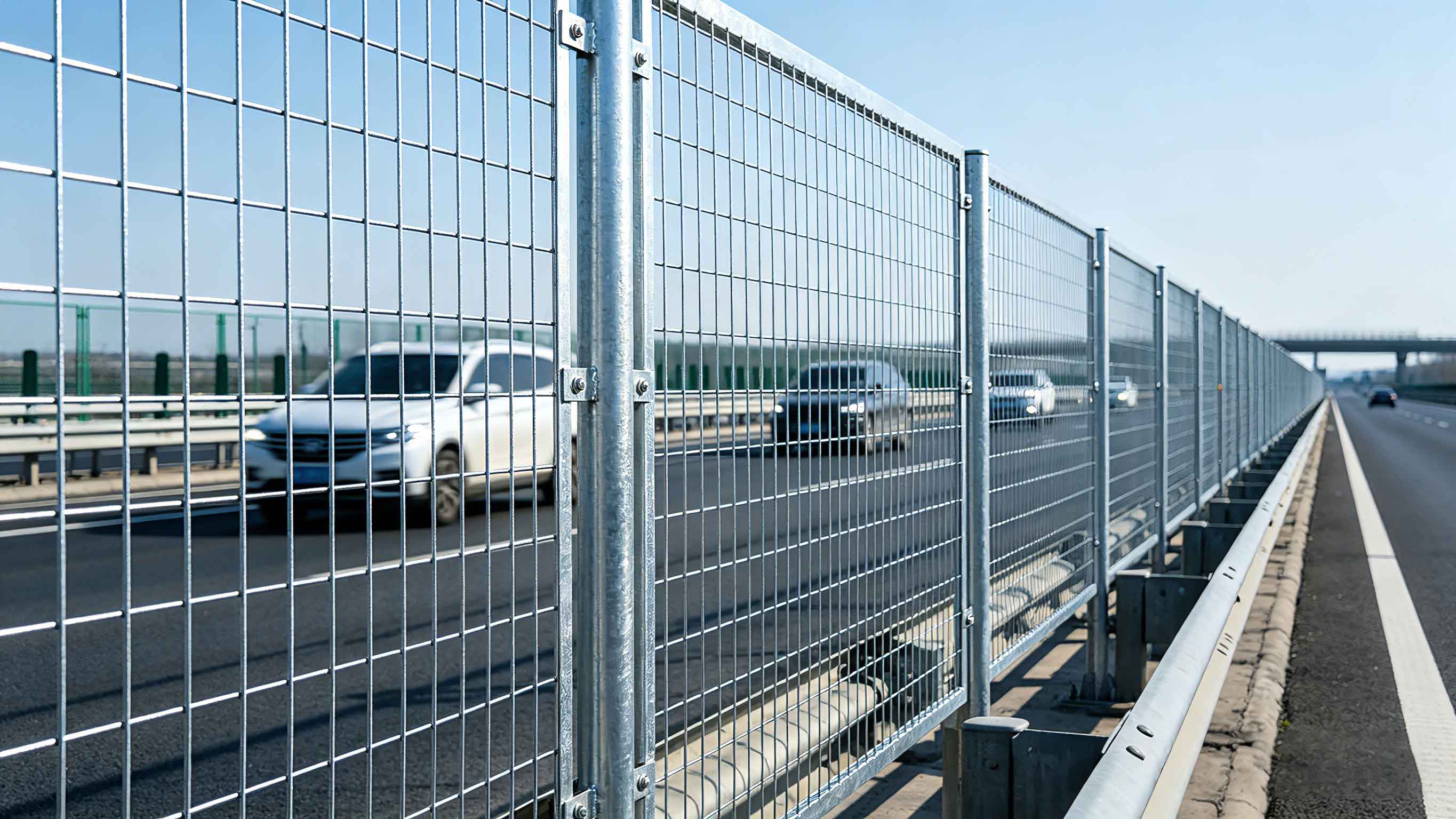

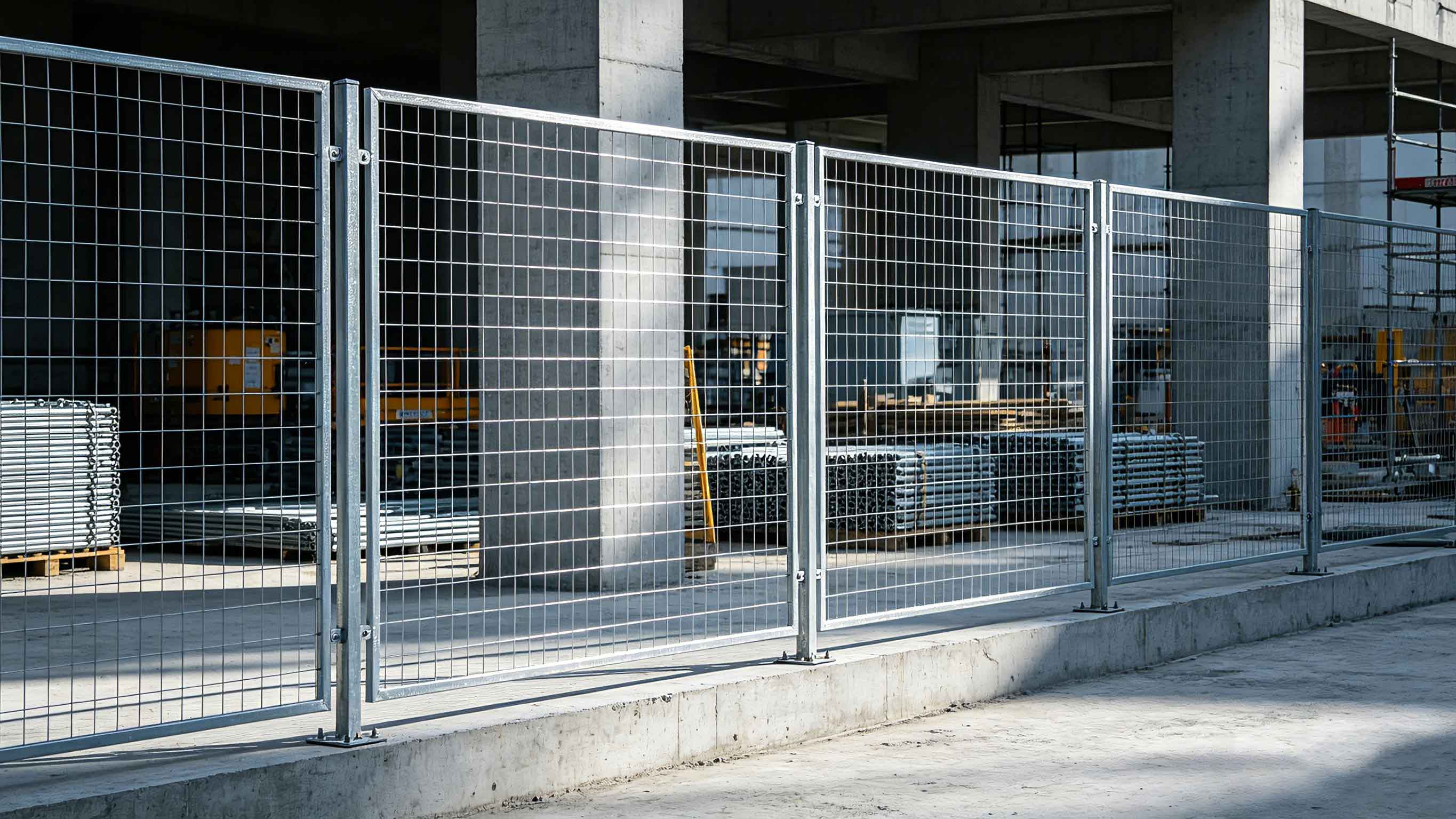

l Fencing: Residential fencing, security fencing, park/recreational facility fencing, and highway safety fencing.

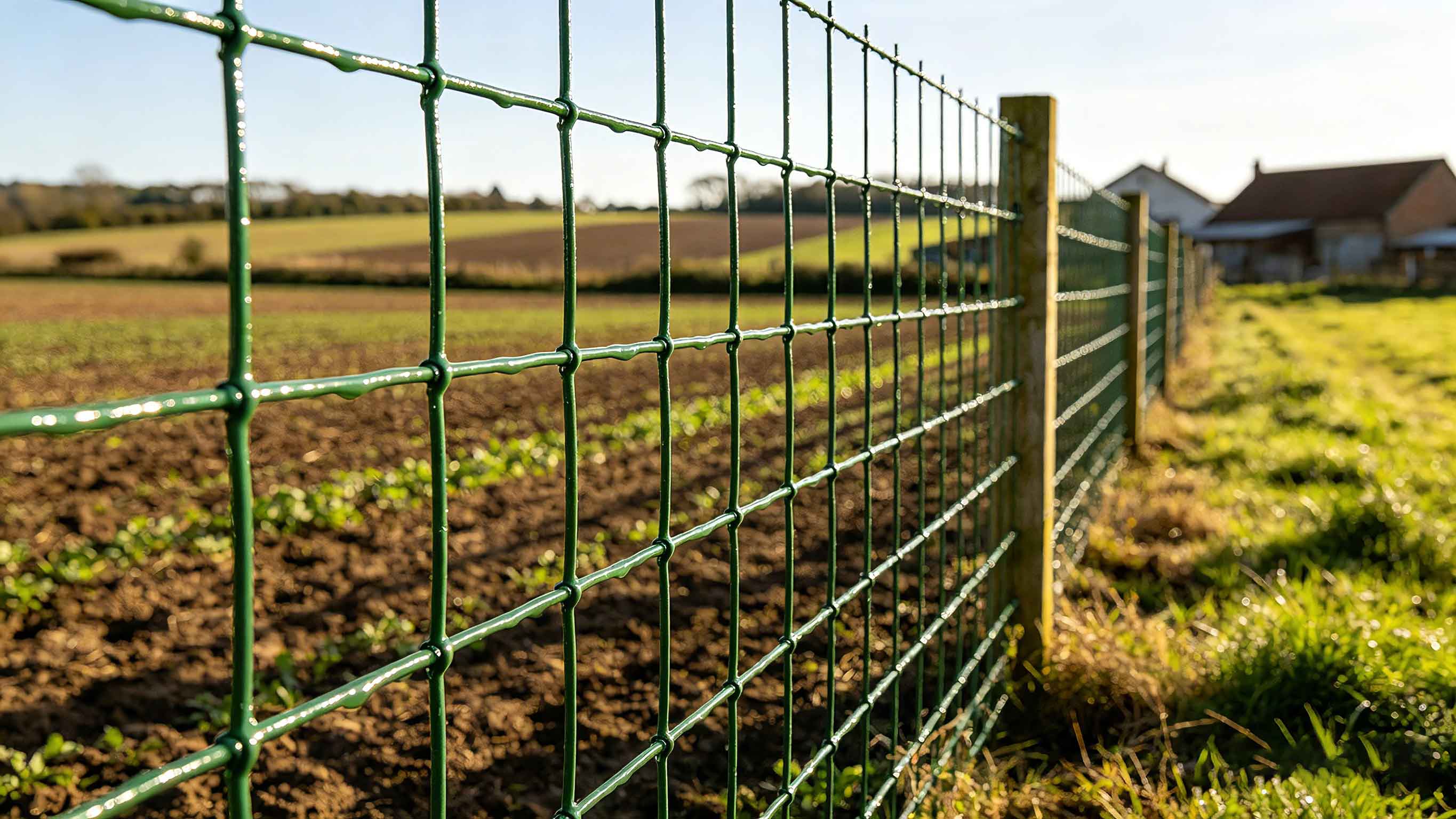

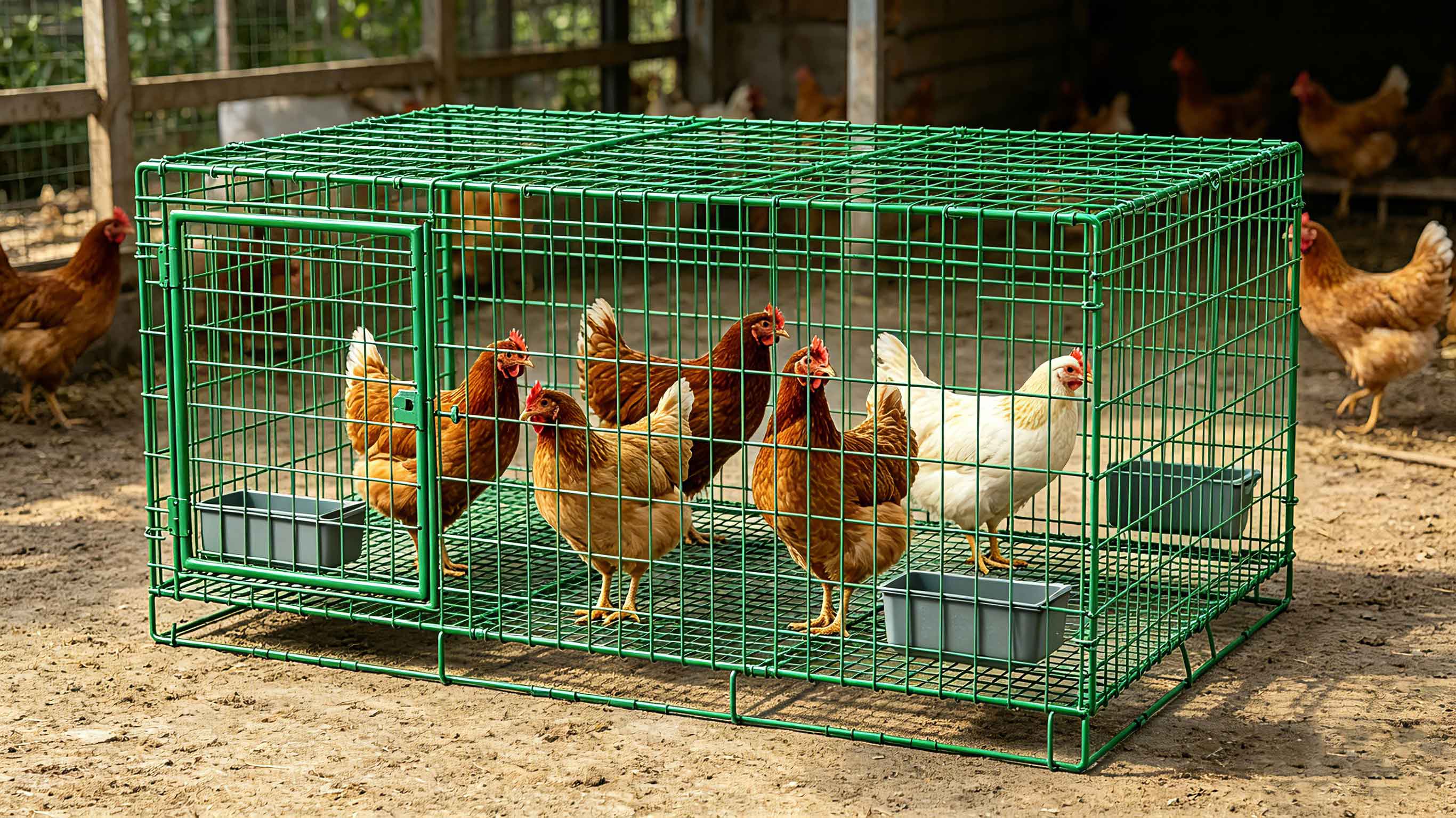

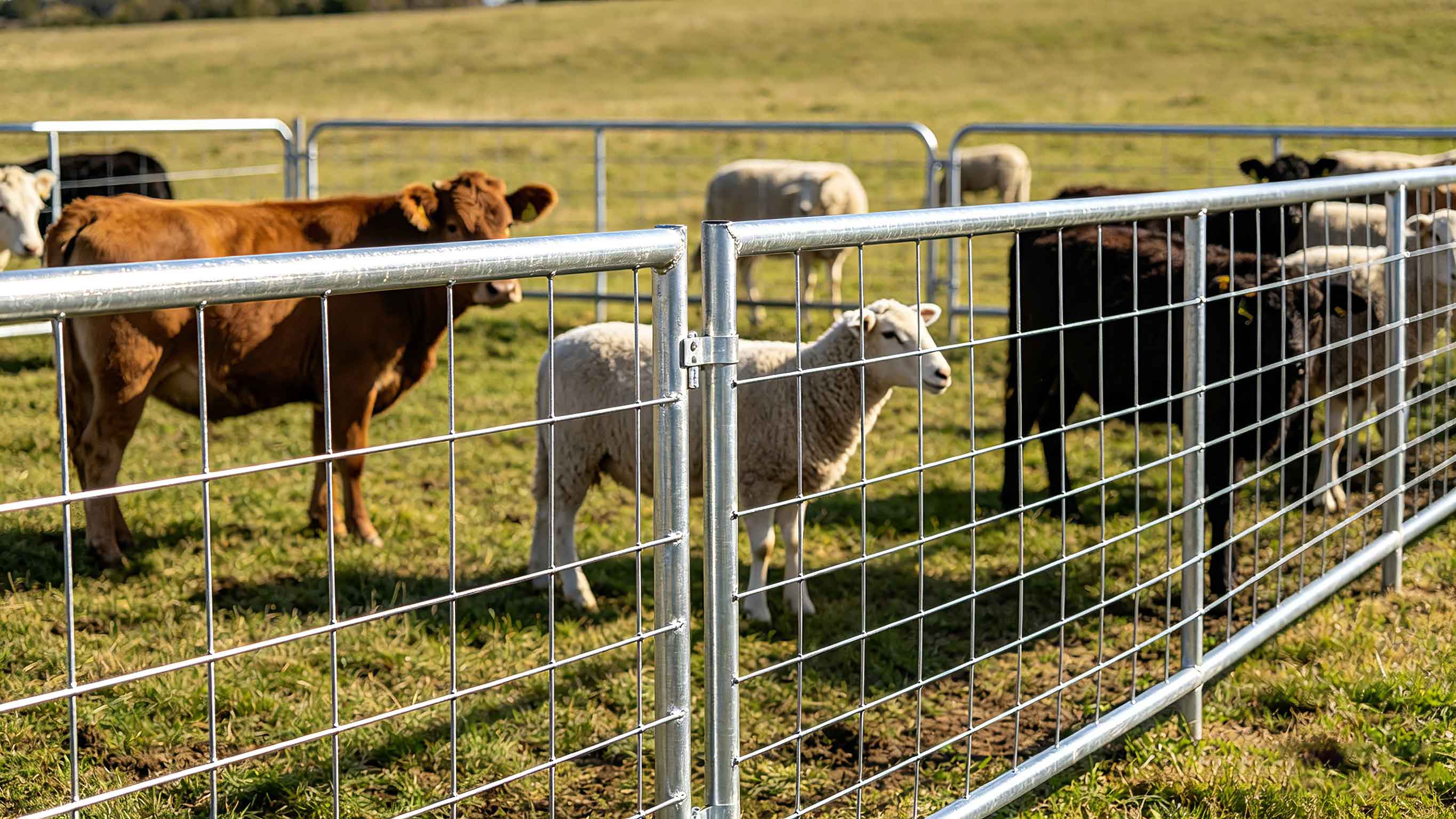

l Agriculture & Farming: Poultry cages, rabbit hutches, dog fencing, and crop protection.
l Construction & Industry: Machine safety guards, Concrete reinforcement, infill panels, and window guards.

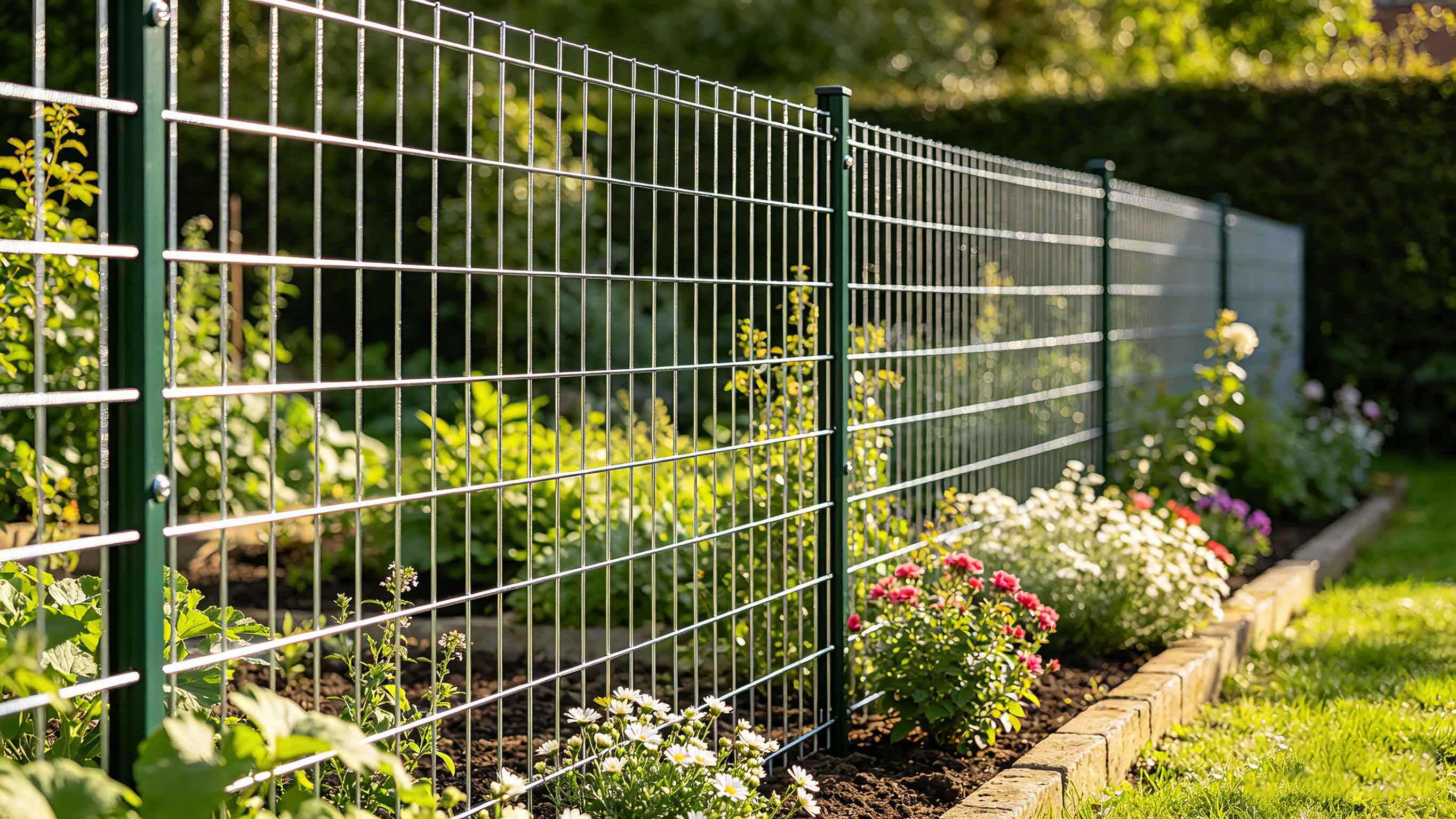

l Landscaping: Protective fencing for plants, trees, and garden partitioning
 |  |  |
 |  |  |
Wire diameter(BWG) | Mesh hole | Length | Height |
| 22,23,24 | 1/4"x1/4" | 20m/roll,25m/roll,30m/roll Or customized | 0.5m-2.0m customized |
| 19,20,21,22 | 3/8"x3/8" | ||
| 16,17,18,19,20,21,22,23 | 1/2"x1/2" | ||
| 18,19,20,21 | 5/8"x5/8" | ||
| 16,17,18,19,20,21 | 3/4"x3/4" | ||
| 16,17,18,19,20,21 | 1"x1/2" | ||
| 14,15,16,17,18,19 | 1-1/2"x1-1/2" | ||
| 14,15,16 | 1"x2" | ||
| 12,13,14,15,16 | 2"x2" | ||
| 13,14,15,16 | 2"x3" | ||
| 12,13,14,15,16 | 3"x3" | ||
| 12,13,14 | 2"x4" | ||
| 12,13,14 | 4"x4" |

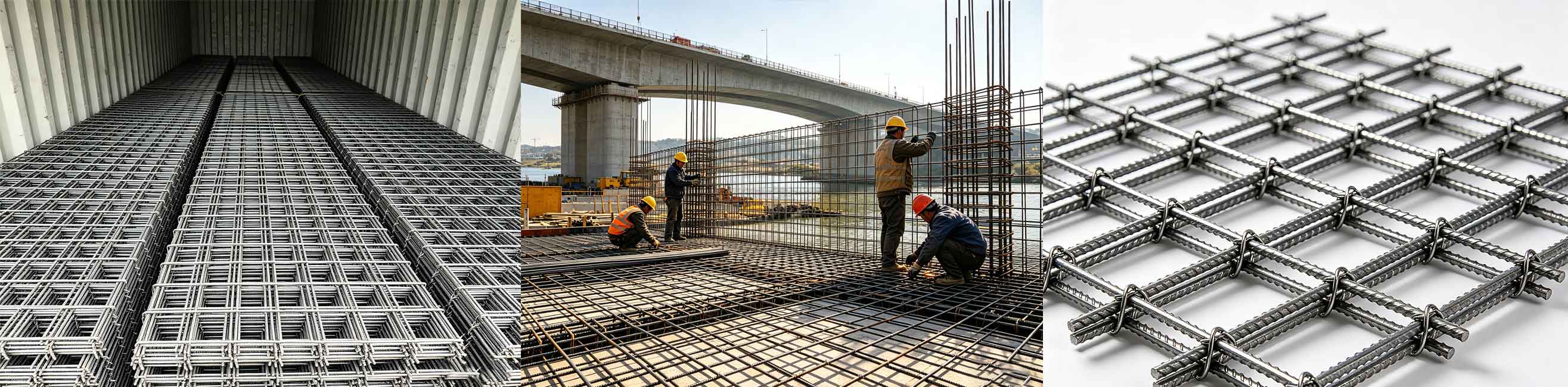

Reinforcing steel welded wire mesh is a prefabricated, high-tensile steel reinforcement material, frequently used in concrete construction to enhance structural integrity and tensile strength. It consists of wire rods welded together at right angles into square or rectangular grids, offering an efficient, fast-to-install alternative to traditional rebar for slabs, walls, and roads.
Key Features and Benefits：
l Superior Efficiency: Replaces manual rebar tying, reducing labor costs and speeding up construction timelines.
l High Quality & Strength: Manufactured in factories with precise, automated welding, ensuring consistent wire spacing and strength.
l Structural Integrity: High-strength steel provides excellent resistance to tensile and flexural stresses in concrete.
l Types: Available in both sheets and rolls to fit various project sizes and requirements.
Usage Examples & Applications：
l Concrete Reinforcement: Ideal for residential slabs, driveways, industrial flooring, footpaths, and precast concrete panels.
l Structural Components: Used in retaining walls, beams, columns, and building foundations.
l Infrastructure: Commonly used in road surfaces, airport runways, bridge decks, and tunnel support.
l Specialized Applications: Ideal for floor heating systems (geothermal mesh) and various fencing requirements.
Standard steel welded wire mesh specifications for bridge deck | ||||
Diameter(mm) | hole distance(mm) | Length(mm) | Width(mm) | Weight(kg/pcs) |
| 7 | 100 | 10250 | 2250 | 129.2 |
| 8 | 100 | 10300 | 2250 | 172.2 |
| 9 | 100 | 10350 | 2250 | 210.4 |
| 10 | 100 | 10350 | 2250 | 260.2 |
| 11 | 100 | 10400 | 2250 | 319.0 |
Specifications of welded wire mesh for construction | ||||
Diameter(mm) | hole distance(mm) | Length(mm) | Width(mm) | Weight(kg/pcs) |
| 6 | 150 | 6000 | 2300 | 41.7 |
| 6 | 150 | 5950 | 2350 | 38.3 |
| 7 | 150 | 6000 | 2300 | 56.8 |
| 7 | 150 | 5950 | 2350 | 52.1 |
| 8 | 150 | 6000 | 2300 | 74.3 |
| 8 | 150 | 5950 | 2350 | 68.2 |
| 9 | 150 | 6000 | 2300 | 93.8 |
| 9 | 150 | 5950 | 2350 | 86.1 |
