Features: high corrosion resistance, easy installation, quick and easy, low cost, high strength, good rigidity, beautiful appearance, wide field of view
Surface treatment: electro-galvanized, hot-dip galvanized, sprayed, dipped and stainless steel wire, etc.
Product details
Features: high corrosion resistance, easy installation, quick and easy, low cost, high strength, good rigidity, beautiful appearance, wide field of view
Surface treatment: Galvanized +PVC coating,electro-galvanized, hot-dip galvanized, sprayed, dipped and stainless steel wire, etc.
Specification:
Dip wire diameter:3.6mm
Aperture: 74mm X 150mm
Column size: 48mm X 2.5mm
Piece of Mesh：1.5m X 2m
| Specification of 3DBendFence | |
| Mesh Opening | 74x150mm/50x100mm/50x150mm/50x200mm/55x200mm |
| Wire Diameter | 3.0/3.6/4/4.5/5.0mm |
| Panel Height | 0.6m-3.0m(Suggestsize：2m/2.4m/3m) |
| Panel Width | 2.0m-3.0m(Suggestsize：2m/2.5m/2.9m) |
| Post Type | RoundPost：48x2.0/2.5mm |
| Square Post(SHS) ：50X50x 1.5/2.0mm60x60x 1.5/2.0mm80x80x 1.5/2.0mm | |
| Rectangular Post(RHS) ：40x60x 1.5/2.0mm40x80x 1.5/2.0mm 60x80x1.5/2.0mm80x100x1.5/2.0mm | |
| Surface Treatment | hot dipped galvanized， galvanized+powdercoated， galvanized+PVC coating |
| Color | BROWN, RAL 6005 green， RAL7016gray， All RAL color can be customized |
| Note | The fence can be customized according to your required if above specification is not satisfied with you |
| Contact Now | Most of the panels are customized， please let us know your request. |
Structure: welded with high-strength cold-drawn wire and low-carbon steel wire and then hydroformed, fixed with link accessories and steel pipe pillars
Uses:Solar photovoltaic project, Railway closed net, living area fence, field fence, development zone isolation net, etc., mainly used in residential fences, municipal green spaces, unit green spaces, port green spaces, and garden flower beds. It plays the role of fence and beautification
Installation Procedure
The uppermost hole in the ground pile and the lowermost hole in the column coincide and are bolted together. Pile pipe exposed to the ground 130mm.The hole at the bottom of the pillar pipe and the first hole of the pile pipe overlap with L- type bolt connection
1450mm Fence Drawing
Pillar Pipe And Mesh Connection
As shown in the figure, please tighten the L-type cross line through the post and tighten it with a nut. Please be careful not to over-tighten the nut during construction, so as not to deform the L- type bolt and dislodge the mesh
Tilting section connector
After adjusting the tilt angle of the mesh, connect the two ends of the mesh with connectors and tighten them with nuts to fix the position, if you need to cut the mesh, please apply anti-rust coating in the cutting part.

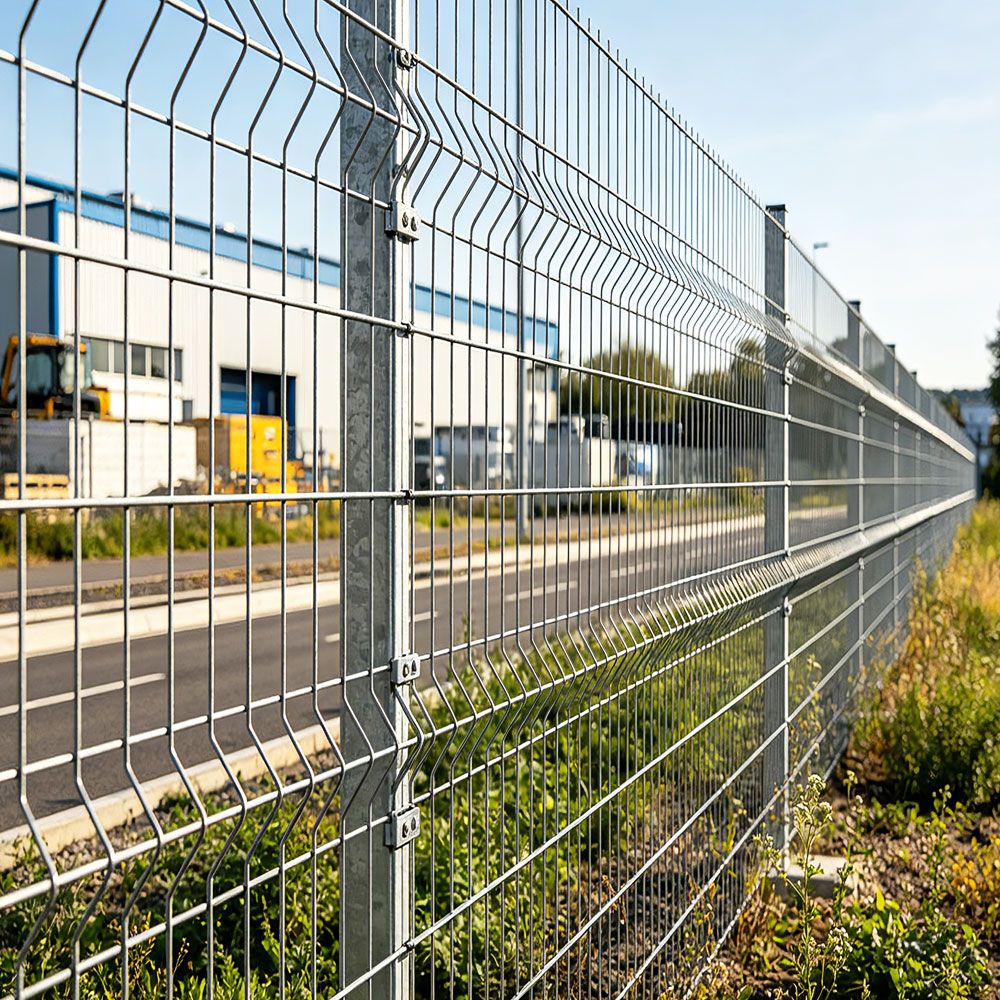

Galvanized mesh
Construction Notes
①When placing goods temporarily at the construction site, avoid placing them directly on the ground and
place them on the anvil. In order not to let the goods break please carry out adequate maintenance.
②Foundation pouring and foundation block installation should be in accordance with the prescribed
practice, horizontal, vertical and right in the middle in the correct position with full attention. The upper end
of the foundation should be 3cm higher than the ground as standard, and the upper end of the foundation should not be extremely higher than the ground or buried in the ground.
③When processing the components at the construction site, be sure to repair and maintain the cutting surface, protruding parts, etc.
④After the assembly is completed and done, please carry out the tightening of the nut class. Without tightening, the loosening of the bolt will cause the possibility of falling off of the parts and breaking of the parts. ⑤If there are scratches or peeling on the painted surface, please use repair paint to repair them.
Handling Notes
①When installing other appendages (windbreak fence, shield panel, etc.) on the standard fence, you
must confirm the strength after asking our company. Without inquiry, it is difficult to hold responsibility for breakage, etc.
